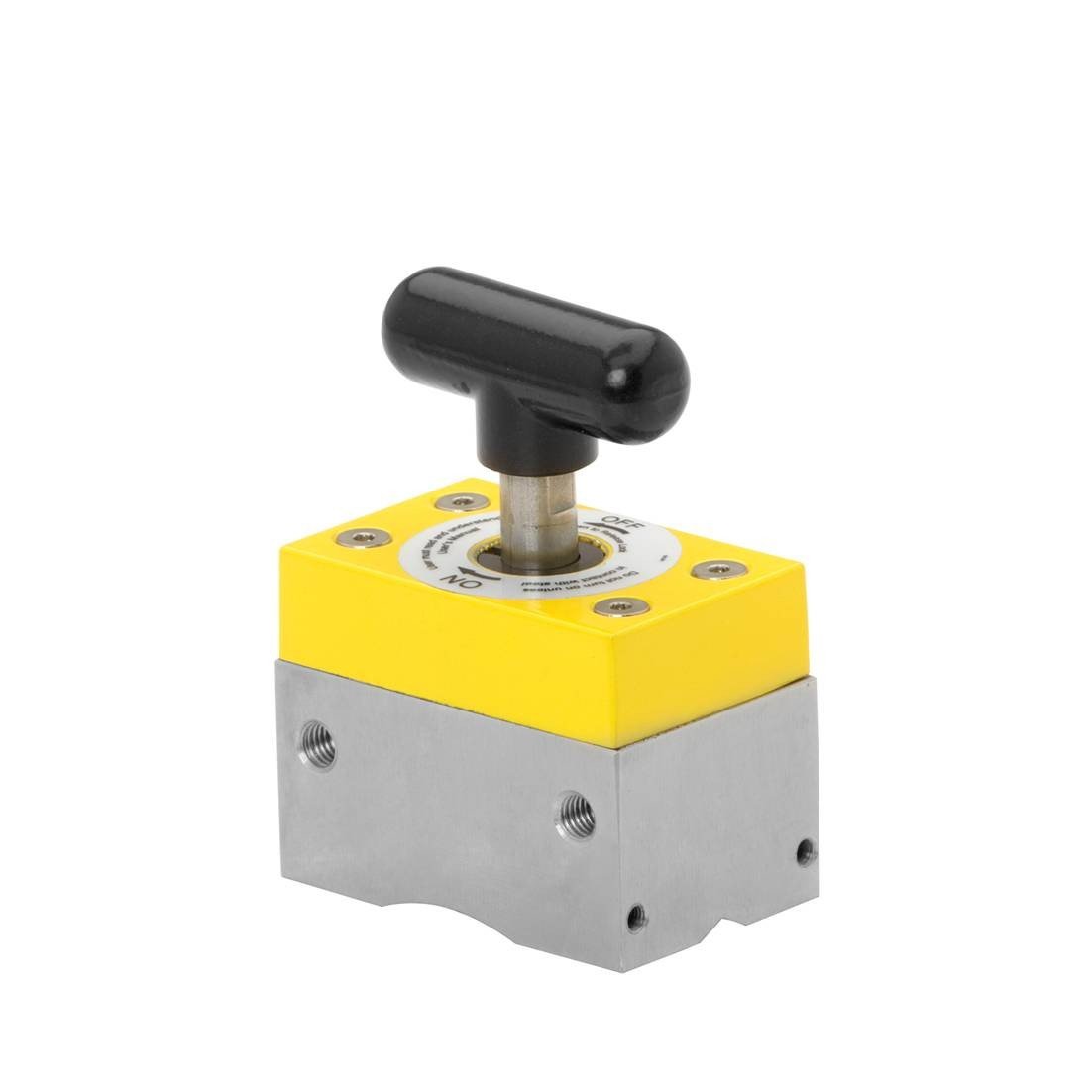

MAGNETIC CLAMP MAGSQUARE 165 8100494

MagSquare 165 On/Off Magneetti, jossa on 68 kg pitovoima.

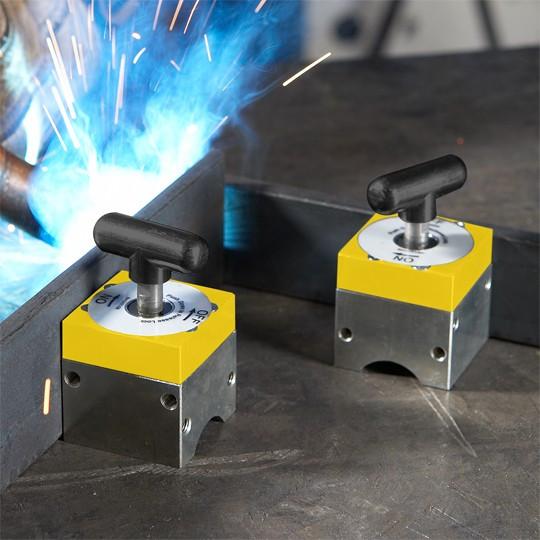

MagSquares tarjoaa uuden nopean ja helppokäyttöisen kiinnityksen teräsasennuksen yhteydessä. Magneetilla pystyt asettamaan hitsattavat ja asennettavat kappaleet oikeaan asentoon

FEATURES

• On/Off Magswitch Magnet control.
• Precise placement turns all the way off –stays clean.
• Machined at 90 degrees.
• Magnetic grip on 5 sides –strong on 3 sides.
• Pipe notch -to grip flat and pipe.
• Super fast set ups and instant workholding.
• On/off control -No fighting magnet for precise positioning.
• Stays clean – when off, debris falls off.
• Multi Plane workholding with hold force on all sides.
• Create your own fabrication jigs by mounting in M6 holes.
• Stays clean –unlike traditional magnetic squares that hold on to metal chips even when off, with Magswitch you won’t cut your fingers cleaning away steel debris.

SPECIFICATIONS

• Max Breakaway: 150 lbs/68 kg
• Full Saturation Thickness: 0.25”/6.35mm
• 2:1 Shear Working Load: 18.5 lbs/8.4 kg
• Product Weight: 0.5 lbs/0.23 kg
• Overall Height: 64.25mm
• Magnetic Pole Footprint: 48mm x 31mm
